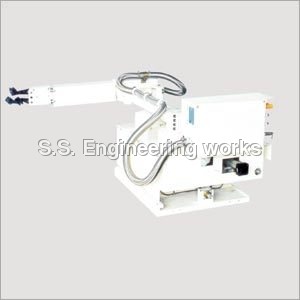

Automatic Extraction Machine

Automatic Extraction Machine
Automatic Extraction Machine
Send Inquiry
Product Code : SS-01
Brand Name : S. S. Engineering
Product Description

Automatic Extracting Machine

  • It can be single acting and fully automatically acting when wire-linked with die-casting machine and spraying machine.
  • With numerous extraction mode to choose, adapt well to mould diversity, obtain automatization produce.
  • With the adoption of PLC control loop, this machine can display the failure codes, making the maintenance more convenient.
  • All the pneumatic elements are fully imported from Japan so as to enhance durability.
Model
 		SSAE- 1
 		SSAE- 2
 		SSAE- 3
 		SSAE- 4
Suitable die- casting machine
 		80T/120T/160T
 		250T/400T
 		500T/630T
 		800T
Width of fixed mold (max)
 		900mm
 		1100mm
 		1300mm
 		1450mm
Work- piece
 		dia 40-60mm
 		dia 50-90mm
 		dia 60-100mm
 		dia 70-120mm
Evulsion force
 		68kfg
 		98kgf
Adjustable distance of Evulsion direction
 		200mm
 		250mm
 		350mm
 		400mm
Force of mechanical arm
 		680kgf
 		900kgf
 		1000kgf
 		1100kgf
Wind pressure source
 		4-6.5kgf/cm2
Air interface
 		PT3/8"
Work- piece weight (max)
 		2kg
 		3.5kg
 		4.5kg
 		8kg
Fixation mode
 		Stationary mode
Console mode
Weight of machine
 		365kg
 		380kg
 		1200kg
 		1300kg
Power supply
(Uniphase) 220V 50-60Hz

Click here for Product Catalog:
